Kioxia has successfully allowed HLC flash memory to function properly under liquid nitrogen environment

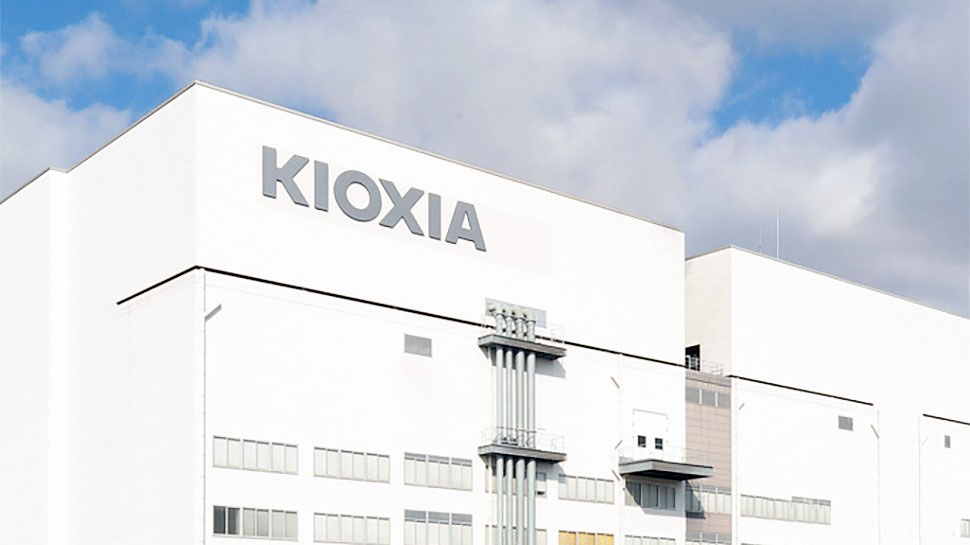

After separating from Toshiba, Kioxia now only focuses on making flash memory products. After announcing PLC (5 bits of data per cell) flash memory for the first time in 2019, KIOXIA demonstrated its research results on new types. These are HLC (6 bits of data per cell) and OLC (storage per cell) at the IEEE Electronic Device Technology and Manufacturing Conference (EDTM) this year. So far, KIOXIA has developed NAND Flash SLC MLC QLC PLC and two new types.

2021 Copyright by Akira fukuda

Difference among Nand Flash SLC MLC and HLC

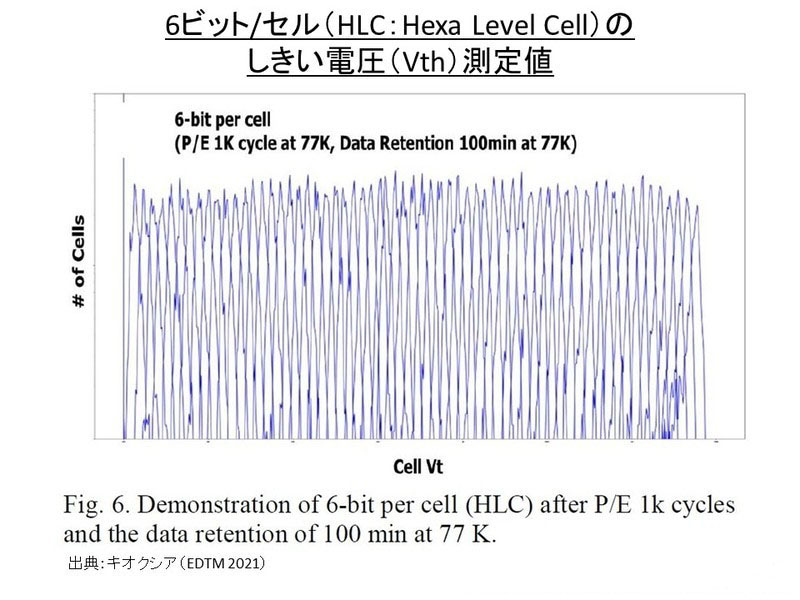

Flash memory uses electrons to store data. SLC flash memory only requires two threshold voltages to distinguish between 0 (programming state) and 1 (erasing state) to store 1-bit data. MLC that stores 2-bit data, requires four threshold voltages to distinguish 00, 01, 10, and 11. When it comes to HLC that each cell stores 6-bit data, it needs as many as 64 threshold voltages to control. It would make you crazy by only look at the picture below. It is not difficult to realize how difficult it is to maintain data and correct errors.

2021 Copyright by Akira fukuda

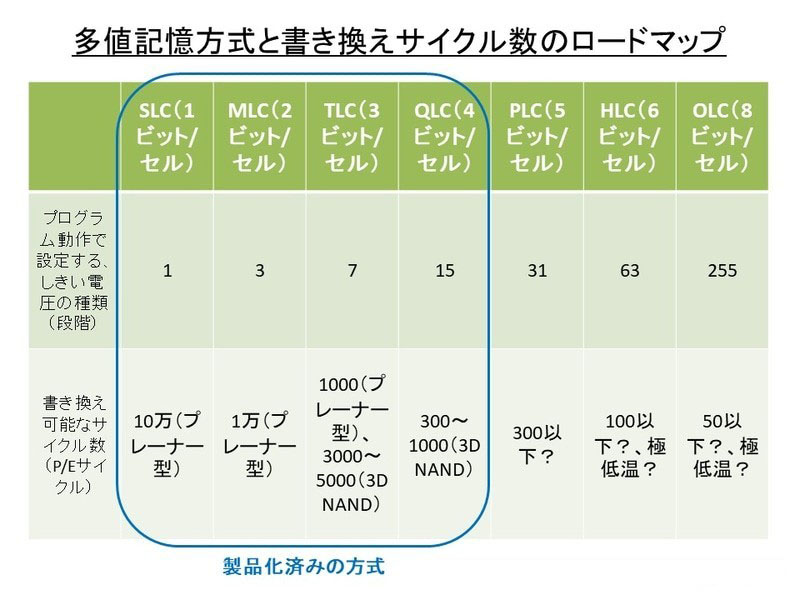

The existing technical condition cannot allow HLC flash memory to function properly under normal temperature conditions. In other words, we should say we can construct a proper environment. However, it is unable to use (the lifespan is too short and there are too many data errors). The following table shows the erasing and writing life of different types of flash memory. 3D QLC flash memory can be erased and writen 300 to 1000 times. The lifespan of PLC flash memory that has not yet under mass-production.  We expect it can be less than 300 times, HLC is to be less than 100 times, and OLC may be less than 50 times…

2021 Copyright by Akira fukuda

The environment of producing flash memory

Kioxia’s method is to make flash memory work in a liquid nitrogen environment. The extremely low temperature (-196 degrees) can reduce the requirement for the tunnel insulating film. Therefore, we must lower the voltage requirement and reduce the wear and tear of writing on the flash memory. As a result, the noise when reading is significantly reduced. Meanwhile, the writing life is prolonged, and data storage time after power failure is increased.

2021 Copyright by Akira fukuda

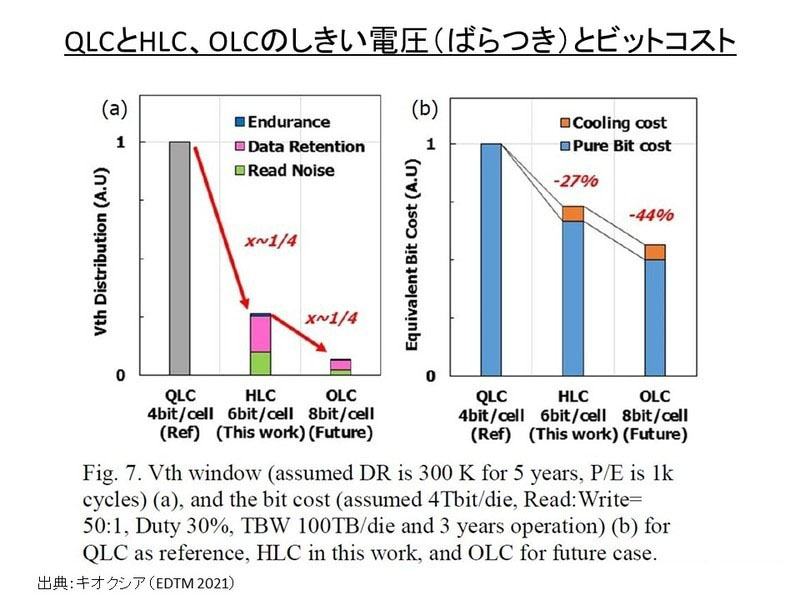

Kioxia allows HLC flash memory to achieve a lifespan of 1,000 erasing and writing in extremely low temperatures. After considering the cost of refrigeration, Kioxia believes that using HLC and OLC flash memory still has a cost advantage. Comparing with using QLC flash under normal temperature, HLC and OLC flash are working in a liquid nitrogen environment. But these studies are carrying out in a laboratory, it still has a long way to go before commercialization. If the future 6bit/cell HLC cannot reach a considerable erasing and writing lifespan under room temperature, the 5bit/cell PLC may become the end of the development of multi-level flash memory.
