The Story of Memory Cards Development in Nand Flash Storage
1967
IBM launched the world’s first floppy disk, which was 32 inches in diameter.
The main technical difficulty at that time was in manufacturing a disk with such a large size while maintaining precision in data storage and retrieval. IBM had to overcome challenges in material selection to ensure the disk’s durability and the stability of the magnetic coating for reliable data storage. The data transfer rate was also relatively low compared to modern standards due to the limitations of the drive mechanics and the recording density achievable at that era. However, this innovation marked the beginning of portable storage solutions.
1971

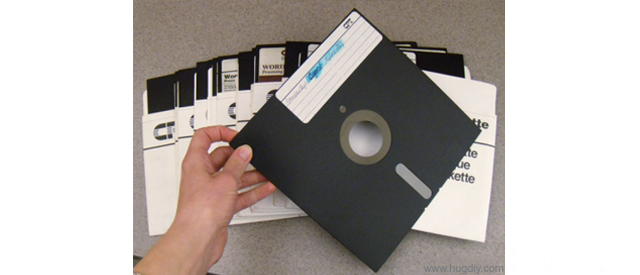

Alan Shugart introduced an 8-inch floppy disk with a capacity of 81KB.
The technological hurdles here included shrinking the size of the disk while increasing the data density. Engineers had to develop new methods for formatting the disk to make more efficient use of the limited space. Additionally, the read/write heads needed to be miniaturized and made more precise to accurately access the smaller data areas on the disk. The actuator mechanism, which moves the read/write heads, required fine – tuning to operate reliably with the smaller disk size.
1976
Wang An IT Co., Ltd. began collaborating with Shugart Associates to develop smaller disks.
One of the significant technical challenges was integrating advanced manufacturing processes to produce disks with even smaller form factors without sacrificing data integrity. There was a need to research and develop new magnetic materials that could provide higher storage densities in a smaller area. The signal – to – noise ratio also had to be improved as the disk size decreased, which involved complex engineering in the read/write electronics. Heat dissipation was another concern due to the closer packing of components in smaller disks.
1980s

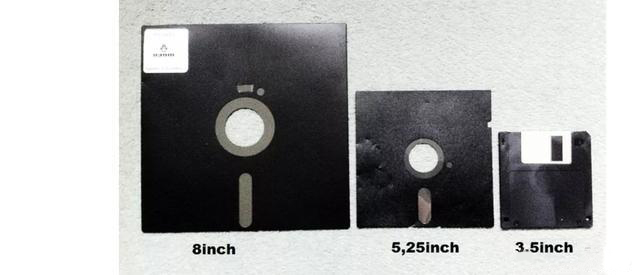

The 5.25-inch and 3.5-inch floppy disks became popular portable storage mediums.
For the 5.25 – inch and 3.5 – inch disks, a major technical difficulty was achieving a balance between storage capacity and physical durability. As the disks became smaller and more portable, they were more susceptible to damage. Engineers had to design protective casing and mechanisms to prevent data loss due to physical shock. In terms of storage capacity, increasing it required more sophisticated data encoding and decoding algorithms to fit more data within the limited space. The motor speed and the precision of the head positioning system also needed to be optimized to ensure reliable data access at higher data rates.
| Storage Medium | Capacity | Release Year | Main Features |
|---|---|---|---|

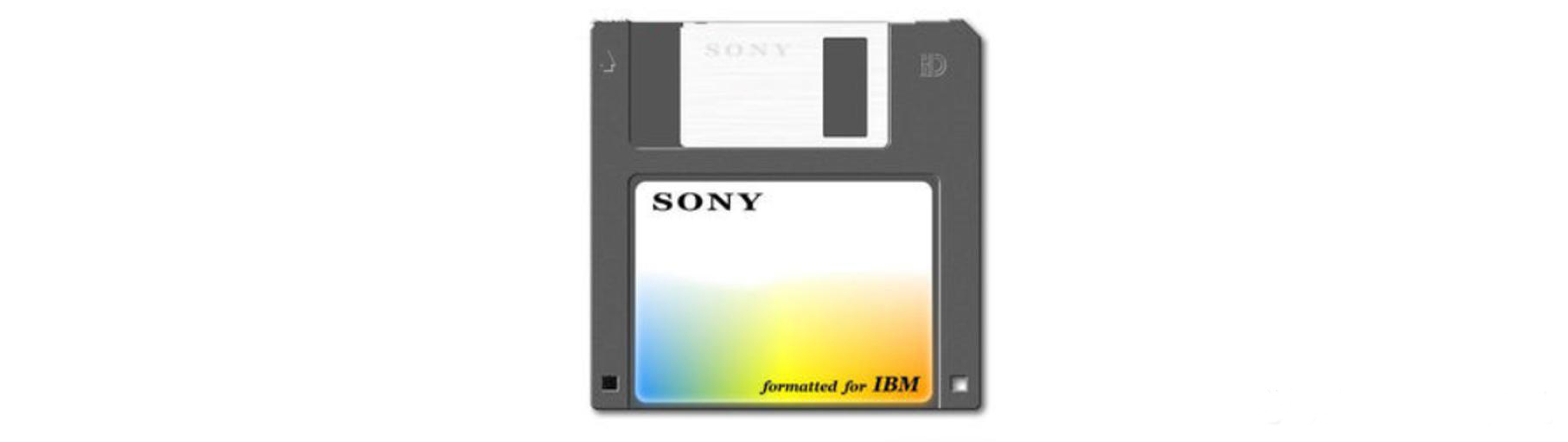

| 3.5-inch Floppy Disk | 1.44MB | 1980s | Portable storage, widely used in personal computers. Its technical achievement was the implementation of a robust data storage system within a relatively small form factor. The disk’s magnetic coating was optimized for high – density data storage, and the read/write heads were designed to be highly accurate for reliable data access. The use of a sturdy casing protected the disk from common physical damages during handling. |
| CD | 700MB | 1982 | Optical storage, replaced floppy disks as mainstream. CDs presented several technical breakthroughs. The manufacturing process involved precise molding and replication of the optical disc surface to achieve a high – quality reflective surface for accurate data reading. The data encoding on CDs, such as the use of pits and lands, allowed for a large amount of data to be stored in a relatively compact space. Additionally, the development of CD players with high – precision laser read/write heads enabled reliable data retrieval at high speeds. |
| USB Flash Drive | From 16MB to several TB | Early 2000s | High – speed read/write, portable, widely used. The key technical difficulties overcome were in flash memory cell architecture and controller technology. Developing flash memory cells with high storage density and low cost was a major challenge. Engineers had to find ways to increase the number of bits stored per cell without sacrificing reliability. The USB interface also needed to be optimized for high – speed data transfer, which involved improvements in the electrical signaling and communication protocols. The flash drive’s controller had to manage wear leveling to ensure equal usage of memory cells over time, extending the lifespan of the drive. |
| Memory Card Type | Size | First Released | Main Applications |
|---|---|---|---|
| MMC Card | 14mm × 18mm | 1997 | Portable electronic devices. The development of MMC cards faced challenges in achieving a small form factor while maintaining high – speed data transfer. Engineers had to design compact circuitry for the card’s controller and memory chips. In terms of communication, establishing a universal standard for data transfer between different devices was a significant breakthrough. This involved defining electrical, mechanical, and protocol specifications that were compatible with a wide range of portable electronics. |

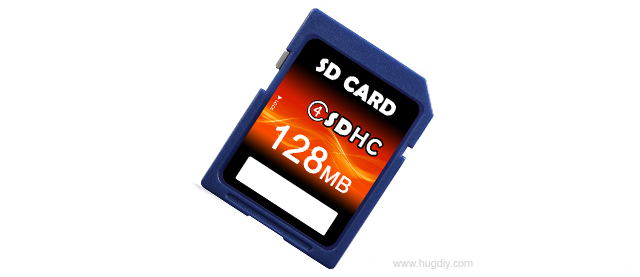

| SD Card | 24mm × 32mm | 1999 | Digital cameras, mobile phones, etc. SD cards had to overcome issues related to power consumption and data integrity in a variety of devices. Low – power design was crucial for battery – powered devices like mobile phones and digital cameras. Ensuring data integrity during rapid data transfers, especially in high – speed modes, required advanced error – correction algorithms. The physical design also had to be compatible with different card readers and devices, which led to improvements in the card’s mechanical locking mechanisms to prevent accidental ejection. |

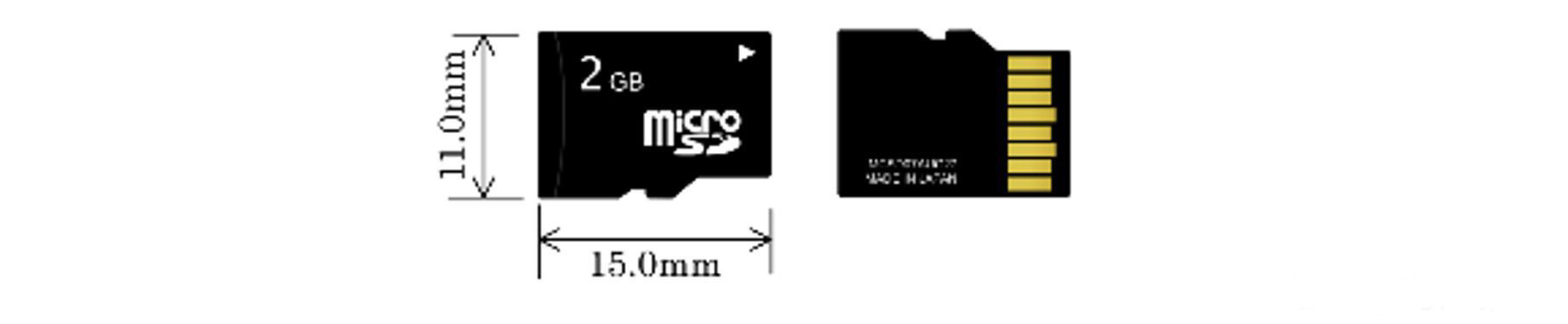

| MicroSD Card | 11mm × 15mm | 2005 | Smartphones, tablets, etc. The main technical difficulties for MicroSD cards were in further miniaturization without sacrificing performance. As the size decreased, heat dissipation became more challenging, so new heat – management techniques were developed. In addition, increasing the storage capacity in such a small space required innovative memory cell stacking and data management methods. The compatibility with a wide range of devices, especially those with limited space for card slots, was also a key consideration in its development. |
With the popularity of mobile terminals, the prevalence of Micro SD cards has greatly exceeded designers’ expectations. In 2017 alone, over 700 million Micro SD cards were sold worldwide. The read/write speed and capacity of Micro SD cards continue to push boundaries, driven by strong market demand. The size of Micro SD cards has remained unchanged for 13 years.
